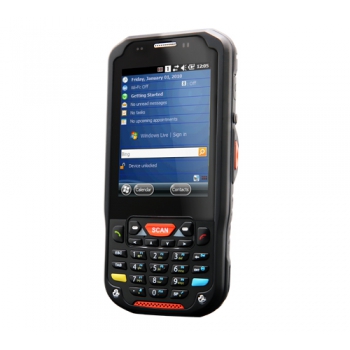

PM60

RUGGED HANDHELD PM60

PM60 is 3.5 inch screen EDA with 3G HSPA+, IEEE 802.11 a/b/g/n, 1D/2D Barcode Scanner, 5MP Camera, Bluetooth Class II v.2.1 +EDR as well as GPS. PM60 can stand up to 1.5m (5 ft) along with IP65 sealing against water/dust. PM60 is designed for outside-4-wall applications and it gives more choice tha...





SPECIFICATION OF PM60


Physical characteristics

  • Dimensions: 156.9x75.6x25.8mm (6.1x2.9x1.1 in)
  • Weight: 340g (11.9oz) with 4,000mAh battery
  • Environmental
  • Operating: -20°C to 60°C (-4°F to 140°F)
  • Storage: -40°C to 70°C (-40°F to 158°F)
  • Relative Humidity: Non-condensing, 95%
  • Rain & Dust Proof: IP65
  • Drop Spec: 1.8m (6 ft) per MIL-STD 810G
  • Tumble Spec: 500cycle (1,000hit) @ 1m (3.3ft)
  • ESD: +/- 15 kV air, +/- 8 kV contact


Power

  • Standard Battery: 4,000mAh Li-ion (14.8Wh)
  • rechargeable, IEEE 1725 Compliant


Operating System

  • Windows Embedded Handheld 6.5 Professional
  • Windows Embedded CE 6.0 Professional
  • Google Android 4.2.2 Jellybean


Micro-Processor

  • TI - Cortex A8 Processor @ 1Ghz



Memory and Storage

  • Memory: 512MB RAM
  • ROM: 1GB NAND Flash ROM
  • User-accessible micro-SD cards up to 32GB SDHC


Display

  • 3.5 in, 480 x 640 pixel (VGA) TFT-LCD,
  • backlight (600NITs), Daylight readable,
  • Wide viewing angle, Resistive touch
  • Standard Communications
  • high speed USB 2.0 from either cradle or
  • USB sync cable


Integrated Camera

  • 5.0 MP Auto focus camera with LED Flash


Keypad Options

  • Numeric (27 key) or QWERTY (45 Key) with backlight



Wireless WAN

  • UMTS Frequencies: 800, 900, 1900, 2100Mhz
  • GSM/GPRS Frequencies: 850, 900, 1800, 1900Mhz
  • Technology Class UMTS: 3.9G HSPA+
  • Max speeds: Uplink - 5.76 Mbps:
  • Downlink - 14.4 Mbps
  • Antenna: Internal

Wireless LAN

  • IEEE 802.11 a/b/g/n Data rates: up to 72.2 Mbps
  • Operating channels: 1 to 13 (2.4Ghz & 5Ghz)
  • Regulatory compliance: As per IEEE 802.11n
  • Security: WEP / WPA / WPA2 and more
  • Authentication: PEAP/MS-CHAPv2, EAP-TLS


Wireless PAN

  • Integrated Bluetooth Class II, Ver.2.1+EDR
  • Operating channels: 0 to 78 (2402-2480 Mhz)
  • Data Rates: 1, 2, 3 Mbps


Global Positioning System

  • 12 channel integrated GPS: assisted via WAN carrier:
  • accuracy within 3m, Stand-alone GPS available
  • NFC (Near Field Communcation)
  • 13.56Mhz HF RFID & NFC
  • Supported Tag-Ics : MIFARE® 1k/4k/Plus,
  • MIFARE UltraLight, MIFARE UltraLight C,
  • MIFARE DESFire, MIFARE DESFire EV1,
  • ISO 14443 A & B


Accelerometer

  • Embedded accelerometer enables automatic or
  • application-specific "screen rotation"
  • Ambient Light Sensor
  • Automatically adjust required display backlight to
  • maximize battery life


Integrated Barcode Scanner

  • 1D Laser Scanner: supprting all 1D standard
  • symbology & Postal code
  • 2D Imager Scanner: supporting all 1D/2D
  • standard Symbology including GS1 Databar

 Indicator and Scan AlertLED

  • Indicator: 2 x dual color LEDs on front:
  • 1) Power, 2)Warning, 3)Scan reading
  • Scan Alert: Vibration


Audio Support

  • Supports VoIP, Built-in microphone and speaker,
  • receiver and headset jack (3.5mm), Wireless Bluetooth
  • headset support


Accessories

  • Standard accessories: AC/DC power adaptor &
  • country plug, Stylus pen & tether, Hand strap, Battery,
  • LCD protection film, USB sync cable.
  • Optional accessories: Single-slot cradle,
  • Single-slot ethernet cradle, 4-slot Cradle,
  • 4-slot Battery Charger, Lether carrying case


Regulatory Approvals and Compliance

  • Safety: EMC, UL, RF, Laser, LED approvals
  • Radio: FCC, CE, KCC Marks
  • Environmental: RoHS & WEEE compliant
