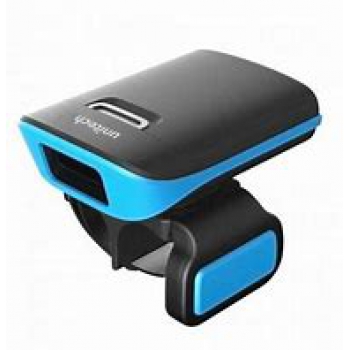

| 							 | 			  | 																																																				| MS652+ (Bluetooth 2D Ring Scanner) | 									 																			  | 									 								 							 						 |
 Optical & Performance
- SensorCMOS sensor (640 x 400 pixels)

- Aiming Element1 Hyper Red 660nm LED

- Ambient LightMax 107, 639 lux (direct sunlight)

- Skew Angle± 60°

- Pitch Angle Sensor± 60°

- Printing Contrast Scale20% Minimum

- Depth of FieldSYMBOLOGY / X-DIM TYPICAL RANGE*Near Far
 5 mil Code 39 2.0 in / 5.1 cm 6.4 in / 16.2 cm 5 mil Code 128 2.5 in / 6.3 cm 5.0 in / 12.7 cm 6.6 mil PDF417 2.5 in / 6.3 cm 6.3 in / 16.0 cm 10 mil PDF417 1.8 in / 4.5 cm* 9.0 in / 22.8 cm 13 mil 100% UPC 2.0 in / 5.0 cm* 12.5 in / 31.7 cm 20 mil Code 39 2.0 in / 5.0 cm* 19.5 in / 49.5 cm 20 mil Data Matrix 1.5 in / 3.8 cm 13.5 in / 34.3 cm 20 mil QR Code 1.5 in / 3.8 cm 11.0 in / 27.9 cm


 Communication
- RadioBluetooth® Low Energy 4.2 / classic V2.1, Class1

- Wireless CoverageUp to 300 Feet/100M (Open space)

- Host Interface supportedMicro USB



 Mechanical
- Dimension50 x 71 x 21 mm

- Weight95g

- Trigger Switch Life1 million times



 Functionality
- Operation ModeTrigger mode, Presentation mode, Auto mode, Batch mode



 Symbologies
- 1D BarcodesAll major symbologies and PDF417

- 2D BarcodesQR Code, Data Matrix, Aztec Code, PDF417,
 Macro PDF417, Micro PDF417, MaxiCode, Coda block A, Codablock F, GS1Composite, Han Xin Code, Australian Post, British Post, Canadian Pos, InfoMail, Intelligent Mail Bar Code, Japanese Post, KIX (Netherlands) Post, GS1 Composite, Korea Post, Planet Code, Postal, Postnet


 Electrical
- Operation VoltageDC 5V ± 10%

- Current ConsumptionOperation mode: 160mA, Standby mode: 23mA
 Power off mode 1uA
- IndicatorLED, Buzzer



 Environmental
- ESD ProtectionFunctional after 8K Contact and 12K Air

- Mechanical Shock1.5M onto concrete (scanner only)

- Operating Temperature-10°C to 50°C

- Storage Temperature-20°C to 60°C

- Relative Humidity95% non-condensing

- IP RatingIP42



 Accessories
- AccessoriesBattery
 Hand strap Micro USB cable 4-Slot Battery Charger (optional)


 Regulatory Approvals
- Regulatory ApprovalsCE, FCC, BSMI, VCCI, TELEC, NCC



 What comes in the box
The standard package contents

- MS652+ Scanner with trigger module

- Battery

- USB Charger Cable

- Wrist Strap

- Finger rubber pad

- Two double-sided tapes
