System
- Display1" OLED, 128 x 64
- OSProprietary, Connect to host with Windows, Android and iOS
- Memory64 Kbytes SRAM / 2MB Flash ROM
- Key3 keys: Page up, Page down, Scan with power,on/off feature
Optical & Performance
- SensorLaser Engine
- Aiming Element650 nm visible laser diode
- Scan Rate104 scans/second
- Skew Angle±40 degrees from normal
- Pitch Angle Sensor±65 degrees from normal
- Optical Resolution4mil
- Printing Contrast Scaleminimum 25%
- Depth of Field(DOF PCS=80%)
Symbology | Density | Near | Far
Code 128, 5 mils | 3.05 cm | 19.56 cm
Code 39, 5 mils | 3.05 cm | 31.75 cm
Code 39, 7.5 mils | 2.79 cm | 46.99 cm
Code 128, 10 mils | 3.05 cm | 48.26 cm
UPC, 13 mils | 4.06 cm | 68.58 cm
Code 128, 15 mils | 2.54 cm | 74.93 cm
Code 39, 20 mils | 3.56 cm | 132.08 cm
Code 39, 55 mils | 8.64 cm | 254.00 cm
Code 39, 100 mils | 60.96 cm | 518.16 cm
Communication
- RadioBluetooth® 2.1+EDR
- Wireless CoverageUp to 30M (Open space)
- Interface/ ProfileWireless SPP & HID profiles
- Host Interface supportedUSB
Mechanical
- Dimension36.9mm x 95.9mm x 21.1mm
- Weight63g
- Trigger Switch Life10 million times
Functionality
- Operation ModeTrigger mode, Pulse mode, Flash mode, Continuous
Mode, Buffer mode
Symbologies
- 1D BarcodesCode 39, Full ASCII Code39, Interleave 2 of 5, UPC A/E/E1, MSI, Codabar, Code 11, EAN8/13, Code 93, Code 128, EAN128, Code32, GS1 databar Code, Bookland EAN, Discreate 2 of 5, Chinese 2 of 5, ISBT 128, UCC Coupon Extended Code, Bookland 128
- Data FormattingPrefix, Suffix, Code ID, Reformatting Date
Electrical
- Operation VoltageDC 3V to 5V
- Current ConsumptionOperation mode: <125mAh , Standby mode: < 39mAh
- Battery TypeRechargeable Li-ion battery battery
- Battery Capacity680 mAh
- Battery Charging timeFully charged in about 3 hours
- Operating Time8 hours at condition of 1 scan/5 sec
Environmental
- ESD ProtectionFunctional after 8K Contact and 12K Air
- Mechanical Shock1.5m onto concrete (scanner only)
- Operating Temperature0°C to 50°C
- Storage Temperature-30°C to 70°C
- Relative Humidity95% non-condensing
- IP RatingIP42
Accessories
- Accessories■ Whist Strap
■ Micro USB to USB cable
■ 1 & 5 Slot Charging cradle (optional)
Regulatory Approvals
- Regulatory ApprovalsCE, FCC, BSMI, VCCI
What comes in the box
- The standard package contents

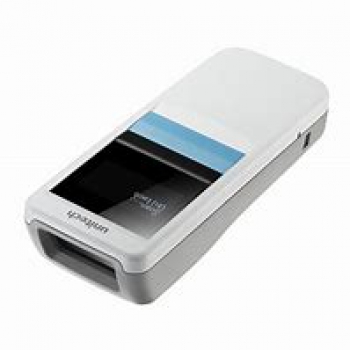

- ■MS916 Scanner
■ USB cable (Micro USB),
■ Hand strap
|
