System
- Display1" OLED, 128 x 64
- OSProprietary, Connect to host with Windows, Android and iOS
- Memory64 Kbytes SRAM / 2MB Flash ROM
- Key3 keys: Page up, Page down, Scan with power,on/off feature
3 keys: Page up, Page down, Scan with power,on/off feature
Optical & Performance
- SensorCMOS sensor with 640 x 480 pixel
- IlluminationWhite LED with CCT 5000K
- Ambient Light0- 100,000 Lux (Sunlight)
- Scan Rate30 frames per second
- Skew Angle± 45°
- Pitch Angle Sensor± 45°
- Optical ResolutionUp to 10 cm/s (4 in/s) for
13 mil UPC at optimal focus
- Printing Contrast Scale35%
- Depth of Field(DOF PCS=80%)
Symbology | Density | Near | Far
100% UPC | 5.5 cm | 28 cm
Code 39, 5 mils | 6.1 cm | 13 cm
Code 39, 20 mils | 6 cm | 38 cm
PDF417, 6.7 mils | 6 cm |12.5 cm
Data Matrix, 10 mil | 6 cm | 13 cm
QR, 20 mil | 5 cm | 23 cm
Communication
- RadioBluetooth® 2.1+EDR, Class 2
- Wireless CoverageUp to 30 Feet (Open space)
- Interface/ ProfileWireless SPP & HID profiles
- Host Interface supportedMicro USB
Mechanical
- DimensionH21.1*W36.9*L95.9mm
- Weight63g
- Trigger Switch Life10 million time
Functionality
- Operation ModeTrigger mode, Presentation mode, Auto mode, Batch mode,
Wedge mode
Symbologies
- 1D Barcodes1D Code
UPC-A, UPC-E, EAN-8, EAN-13, CODE 39, CODE 128, GS1 128, I 2 of 5, NEC 2 of 5, CODE 93, Codabar, GS1DataBar Omn, GS1DataBar Ltd, GS1DataBar Exp, CODE 11, MSI, UPC-E1, S 2 of 5 Indus, S 2 of 5 IATA, Matrix 2 of 5
1D Postal Code
China Post, Korea Post
- 2D Barcodes2D Code
QR Code, Data Matrix, Aztec Code, PDF417, Macro PDF417, Micro PDF417, MaxiCode, Codablock A, Codablock F, GS1 Composite, Han Xin Code
2D Postal Code
Australian Post, British Post, Canadian Pos, InfoMail, Intelligent Mail Bar Code, Japanese Post, KIX (Netherlands) Post, GS1 Composite, Korea Post, Planet Code, Postal, Postnet
Electrical
- Operation VoltageDC 3V to 5V
- Current ConsumptionOperate: 400mA, Standby: 160mA
- Battery TypeRechargeable Li-ion battery battery
- Battery Capacity680mAh
- Battery Charging timeFully charged within 4 hours
- Operating Time5 hours at condition of 1 scan/5 sec
Environmental
- ESD ProtectionFunctional after 8K Contact and 12K Air
- Mechanical Shock1.5m onto concrete (scanner only)
- Operating Temperature0°C to 50°C
- Storage Temperature-30°C to 70°C
- Relative Humidity95% non-condensing
- IP RatingIP42
Accessories
- Accessories■ Whist Strap
■ Micro USB to USB cable
■ 1 & 5 Slot Charging cradle (optional)
Regulatory Approvals
- Regulatory ApprovalsCE, FCC, BSMI, VCCI
What comes in the box
- The standard package contents

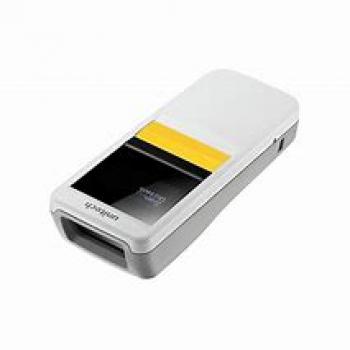

- ■ MS926 scanner
■ USB cable (Micro USB)
■ Hand strap
|
