System
- Display1" OLED, 128 x 64
- OSProprietary, Connect to host with Windows, Android and iOS
- Memory64 Kbytes SRAM / 2MB Flash ROM
- Key3 keys: Page up, Page down, Scan with power,on/off feature
Optical & Performance
- Sensor752×480 CMOS
- Aiming ElementLaser diode 650nm
- IlluminationRed LED 625nm±10nm
- Ambient Light100,000 Lux (Sunlight)
- Skew Angle± 55°
- Pitch Angle Sensor± 55°
- Roll AngleHorizontal 36°, Vertical23°
- Printing Contrast Scale20%
- Depth of Field(DOF PCS=80%)
Decode Range | Near | Far
EAN-13, 13 mils | 6.0 cm | 29 cm
Code 39, 5 mils | 5.5 cm | 16.5 cm
PDF417, 6.7 mils | 5.5 cm |13.5 cm
Data Matrix, 10 mil | 5.5 cm | 13 cm
QR, 15 mil | 4.5 cm |17.5cm
Communication
- RadioUnlicensed 2.4GHz
- Wireless Coverage10M( line of sight)
- Interface/ ProfileWireless SPP & HID profiles
- Host Interface supportedMicro USB
Mechanical
- DimensionH21.1*W36.9*L95.9mm
- Weight63g
- Trigger Switch Life10 million times
Functionality
- Operation ModeTrigger mode, Presentation mode, Auto mode, Batch mode,
Wedge mode
Symbologies
- 1D BarcodesCode 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,
Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128,
GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5,
Standard 2 of 5, Plessey, MSI-Plessey, etc.
- 2D BarcodesPDF417, Data Matrix (ECC200, ECC000, 050, 080, 100, 140),
QR Code, Chinese Sensible Code
Electrical
- Operation VoltageDC 3V to 5V
- Current ConsumptionOperate: 300mA, Standby: 70mA
- Battery TypeRechargeable Li-ion battery battery
- Battery Capacity680 mAh
- Battery Charging timeFully charged in about 4 hours
- Operating TimeOver 9 hours at condition of 1 scan/5 sec
Environmental
- ESD ProtectionFunctional after 8K Contact and 12K Air
- Mechanical Shock1.5m onto concrete (scanner only)
- Operating Temperature0°C to 50°C
- Storage Temperature-30°C to 70°C
- Relative Humidity5% to 90% non-condensing
- IP RatingIP42
Accessories
- Accessories■ Whist Strap
■ Micro USB to USB cable
■ 1 & 5 Slot Charging cradle (optional)
Regulatory Approvals
- Regulatory ApprovalsCE, FCC, BSMI, VCCI
What comes in the box
- The standard package contents

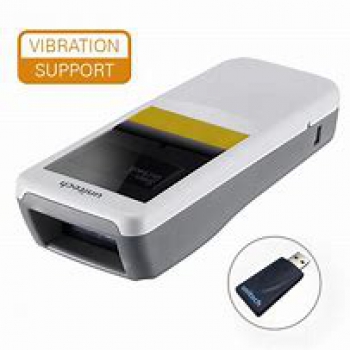

- ■ MS926P scanner,
■ USB cable (Micro USB),
■ Wrist strap,
■ 1 & 5 Slot Charging cradle (optional)
|
