PM550

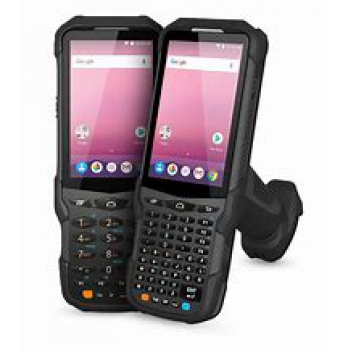

PM550 is a 4.3 inch screen handheld with a 1.2GHz Quad Core 64-bit CPU, 6,300mAh removable battery, IEEE 802.11 a/b/g/n, 1D/2D standard and extra-long range scanner, and Bluetooth v4.1. PM550 is a rugged handheld terminal with a 1.5m(5ft) drop spec and IP65 water and dust proof protection.

Dimensions
With standard batt.: 204.5 x 79 x 175mm /
8.05 x 3.11 x 6.88in

Weight
586g / 20.67oz

Display
4.3", IPS panel (480 x 800 pixel) WVGA
Exceptionally bright
Daylight readable (500 nits typical)

Touch Panel
Multi-touch capacitive
Optically bonded with Corning Gorilla
glass® for strong and rugged durability

Power
Main Battery: 3.63V, 6,300mAh removable
Back-up Battery: 3.7V, 60mAh (Hot-Swap)

Keypad
2 Keypad options (backlit keys):
24 Key Numeric (Shifted alpha),
51 Key Alpha Numeric

Standard Communications
High speed USB 2.0 type-C port

Notification
Top-front, bottom, touch panel dual color
LEDs for scanning and charging
Vibrator
Beeper

Main-Processor
Qualcomm® APQ8016 1.2GHz Quad Core
64-bit CPU

Operating System
Google Android(CTS & GMS certified):
7.1.2 Nougat

Memory and Storage
RAM: 2GB
ROM: 16GB

Sensor
Accelerometer sensor

Operating Temperature
-20°C to 60°C / -4°F to 140°F

Storage Temperature
-25°C to 70°C / -77°F to 158°F

Humidity
95% Non-condensing

Drop
Multiple 5' / 1.5m drops to concrete
over the operating temperature
Multiple 6' / 1.8m drops to concrete at
ambient temperature 73°F/23°C;
meets and exceeds MIL-STD-810G

Rain / Dust Proof (Sealing)
IP65

Tumble
500 cycles (1,000hits) at 1m / 3.3 ft

Electrostatic Discharge
±15 kV air discharge
±8 kV contact discharge

http://www.pointmobile.co.kr/item.php?it_id=1527054104&ca_id=302030



Integrated Barcode Reader
1D/2D Imager: 1D/2D Standard
symbology including GS1 Databar 1D/2D Extra long range imager: reads
up to 11meter (100mil Data Matrix) Extended Wedge: Edit your decode value

Wireless LAN
Radio: IEEE 802.11a/b/g/n/d/h/i/k/r/v, IPv4,
IPv6, 1X1 SISO
Data Rates: IEEE 802.11a/n: Up to 150 Mbps
IEEE 802.11b/g/n: Up to 72.2 Mbps
Operating Channels: 1 to 13 (2412~2472MHz),
36 to 165 (5180~5825MHz)
Channel Bandwidth: 20, 40 MHz
Security and Encryption: WEP(40 or 104bit)
WPA/WPA2 Personal(TKIP, AES);
WPA/WPA2 Enterprise(TKIP/AES) -
PEAP(MSCHAPv2, GTC),
TLS, TTLS(PAP, MSCHAP, MSCHAPv2,
GTC), PWD, SIM, AKA, AKA',
FAST(MSCHAPv2, GTC), LEAP
Fast Roam: PMKID Caching, Cisco CCKM, 802.11r

Wireless PAN
Bluetooth: Integrated Bluetooth Class I, Ver. 4.1
Channels: 0 to 78 (2402-2480MHz)
Data Rates: 1, 2, 3Mbps

Regulatory Approvals and Compliance
CB, CE, FCC, IC, TELEC, IFETEL, CCC, SRRC,
ANATEL, RCM, WPC, TRC, TRA, CITC, KC, RoHS

Enterprise Solution
SOTI, Airwatch, Teamviewer

EmKit
Power Launcher: Kiosk mode with system
restriction Allows admin to restrict
operator's access to system settings,
MTP connection and screen capture
Direct Clone: Master PDA becomes a
local server for a nearby Point Mobile
device to automatically communicate and
download/restore backup files
Scan2Set: Unique two-step feature for
Point Mobile Android models that enables
the fastest device deployment right out of
the box

Warranty
Subject to the Terms and Conditions, PM550
carries 1 (one) year-warranty period from the
date of purchase against the defective
materials and manufacturing defects. Point
Special and Premium Care service is
recommended.
