Products » Handheld Computers » Point Mobile » PM66


PM66

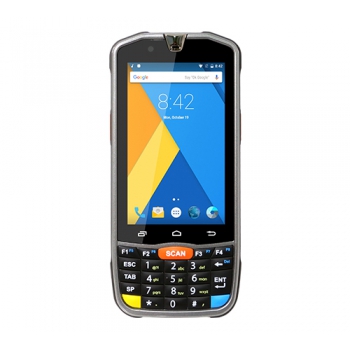

RUGGED HANDHELD PM66

PM66 is 4.3 inch screen full touch mobile terminal with Qualcomm 1.2 GHz Quad core, IEEE 802.11 a/b/g/n, optional 1D/2D Barcode scanner, Bluetooth v4.0. This numeric key pad mobile terminal can stand up to 1.5m (5ft) along with IP67 water and dust protection.



 Specifications Of PM66


Physical characteristics

  • Dimensions with battery:
  • 76.83 mm x 166.01 mm x 29.27 mm
  • (3.02 x 6.53 x 1.15 inch)
  • Weight: 300g (10.58oz) with battery


Environmental

  • Operating: -20°C to 60°C (-4°F to 140°F)
  • Storage: -25°C to 70°C (-13°F to 158°F)
  • Relative Humidity: Non-condensing, 95%
  • Rain & Dust Proof: IP67
  • Drop: 1.5m (5 ft) per MIL-STD 810G
  • Tumble: 500 cycles (1,000hits) @
  • 1.0 meter (3.3'ft) per IEC 60068-2-32
  • Electrostatic Discharge:
  • +/- 15 kV air discharge +/- 8 kV contact discharge


Power

  • Battery : Li-Ion, 3.85V 4,100mAh,
  • Rechargeable, UN38.3 certificate,
  • UL2054/UL1642, IEC62133 KC/PSE
  • Supports micro USB charging


Operating System

  • Google Android 6.0.1 Marshmallow
  • (CTS & GMS certified)
  • Micro-Processor
  • Qualcomm MSM8916 @ up to 1.4GHz Quad-core



Memory and Storage

  • Memory: 2GB RAM
  • ROM: 16GB NAND Flash
  • User-accessible micro-SD cards up to 32GB SDHC


Display

  • 4.3 in. IPS panel WVGA (480 x 800 pixel),
  • exceptionally bright, outdoor viewable,
  • optically bonded to touch
  • Touch Panel
  • Multi-touch capacitive touch panel,
  • optically bonded with Corning Gorilla glass for
  • strong and rugged durability. Works even when
  • wet and with many offthe-shelf gloves.


Standard Communications

  • High speed USB 2.0 from cradle and Micro-USB port


Camera

  • 13MP with LED flash (Rear only)



Keypad Options

  • Numeric keypad (24 Keys) with backlight



Sensors

  • Proximity sensor, Light ambient sensor,
  • Acceleration sensor, Gyro and Digital compass



Wireless WAN

  • EDGE/GPRS/GSM:900/1800
  • 3G HSPA : B1/2/5/6/8/19
  • 4G LTE FDD: B1/2/3/4/5/7/8/17/20
  • 4G LTE TDD : B40/41


Wireless LAN

  • IEEE 802.11 a/b/g/n Data Rates: Up to 150Mbps
  • Operating Channels: 1 to 13 (2.4GHz & 5GHz)
  • Regulatory Compliance: As per IEEE 802.11n
  • Security: WEP / WPA / WPA2 and more
  • Authentication: PEAP/MS-CHAPv2, EAP-TLS



Wireless PAN

  • Integrated Bluetooth Class II, Ver. 4.1
  • Operating Channels: 0 to 78 (2402-2480MHz)
  • Data Rates: 1, 2, 3Mbps


Global Positioning System

  • 12 channel integrated GPS:
  • Assisted via WAN carrier, support GLONASS


NFC (Near Field Communication)

  • ISO14443A, ISO14443B & ISO15693 are
  • supportive, 13.56MHz HF
  • *Supported Tag-Ics:
  • MIFARE® 1k, MIFARE 4k, MIFARE Plus,
  • MIFARE UltraLight, MIFARE UltraLight C,
  • MIFARE DESFire, MIFARE DESFire EV1,
  • ISO 14443A/B tags


Integrated Barcode Scanner

  • 1D Laser Scanner: Supprting all 1D standard
  • symbology & postal code
  • 2D Imager Scanner: Supporting all 1D/2D
  • standard symbology including GS1 databar



LED Indicator & Scan Alert

  • Indicator: 2 x dual color LEDs on front.
  • 1) Power indications, 2) Warning indications,
  • 3) Scan reading
  • Scan Alert: Vibration, beep


Audio Support

  • Support VoIP, built-in two microphone (Noise-cancelling),
  • speaker, receiver and headset jack (3.5mm),
  • wireless Bluetooth headset support


Accessories

  • Standard Accessories: AC/DC power adaptor &
  • country plug, Standard battery, Hand-strap,
  • LCD protection film, USB cable
  • Optional Accessories: Single-slot cradle, 4-slot cradle,
  • 4-slot battery charger, Gun-handle
