PM450

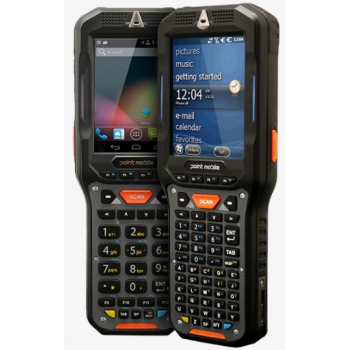

RUGGED HANDHELD PM450

PM450 is 3.5 inch screen PDT with TI Cortex A8 1Ghz, IEEE 802.11 a/b/g/n, 1D/2D standard and long range Barcode Scanner, EPC Gen2 certified Bluetooth Class II v2.1+EDR. PM450 is ultra-rugged handheld terminal with 1.8m (6ft) drop spec and IP65 water/dust proof, which is designed for many vertical

Specifcations Of PM450


Physical characteristics

  • Dimensions: 212.5 x 80.2 x 39.25mm (8.3 x 3.1 x1.5 in),
  • Grip width: 64.5mm (2.5 in)
  • Weight:
  • 468g (16.5oz) w/ Mid/STD scanner & STD battery
  • 508g (17.9oz) w/ Mid/STD scanner & EXT battery
  • 516g (18.2oz) w/ extra long range scanner & STD battery
  • 556g (19.2oz) w/ extra long range scanner & EXT battery



Environmental

  • Operating: -20°C to 60°C (-4°F to 140°F)
  • Storage: -40°C to 70°C (-40°F to 158°F)
  • Relative Humidity: Non-condensing, 95%
  • Rain & Dust Proof: IP65
  • Drop : 1.8m (6 ft) across the operating
  • temperature range
  • Tumble : 1,000cycle (2,000hit) @ 1m (3.3ft)
  • ESD: +/- 15 kV air, +/- 8 kV contact


Power

  • Standard Battery: 3,120mAh Li-ion
  • Extended Battery: 5,200mAh Li-ion
  • removable, rechargeable


Operating System

  • Windows Embedded CE 6.0 Professional
  • Windows Embedded Handheld 6.5 Professional
  • Google Android 4.2.2 Jellybean


Micro-Processor

  • TI - Cortex A8 Processor @ 1Ghz


Memory and Storage

  • Memory: 512MB RAM
  • ROM: 1GB NAND Flash ROM
  • User-accessible micro-SD cards up to 32GB SDHC


Display

  • 3.5 in, 240 x 320 pixel (QVGA) TFT-LCD
  • 3.5 in, 480 x 640 pixel (VGA) TFT-LCD
  • (VGA model only: LED Backlight 600NITs,
  • daylight readable, Wide viewing angle)


Standard Communications

  • High speed USB 2.0 from either cradle or
  • USB sync cable
  • RS232 (115 Kbps) from cradle
  • Wireless WAN (Data only, no voice)
  • UMTS Frequencies: 800, 900, 1900, 2100Mhz
  • GSM/GPRS Frequencies: 850, 900, 1800, 1900Mhz
  • Technology Class UMTS: 3.9G HSPA+ Max
  • Max speeds: Uplink - 5.76 Mbps
  • Downlink - 14.4 Mbps



Wireless LAN

  • IEEE 802.11 a/b/g/n
  • Data rates: 11, 54 and 72.2 Mbps
  • Channels: 1 to 13 (2.4GHz) / 36 to 165 (5GHz)
  • Regulatory compliance: As per IEEE 802.11n
  • Security: WEP / WPA / WPA2 and more
  • Authentication: PEAP/MS-CHAPv2, EAP-TLS, CCX
  • Encryption: WEP, AES, TKIP


Wireless PAN

  • Integrated Bluetooth Class II, Ver.2.1+EDR
  • Operating channels: 0 to 78 (2402-2480 MHz)
  • Data Rates: 1, 2, 3 Mbps



Interactive sensors

  • Accelerometer & Ambient light sensor


Global Positioning System (GPS)

  • Standalone GPS,
  • Assisted GPS
  • -Control Plan - E911
  • -User Plan -gpsOneXTRA(TM)


Integrated Barcode Scanner

  • 1D mid-range laser scanner :
  • reads up to 2.5meter (55mil Code 39)
  • 1D/2D standard range imager :
  • reads up to 381mm (UPC 100%)
  • 1D/2D Extra long range imager : reads
  • up to 11meter (100mil Data Matrix)


Audio Support

  • Supports VoIP, Built-in microphone and speaker,
  • headset jack (3.5mm)



Integrated Camera

  • 5.0 MP Auto focus camera with flash light



Keypad Options

  • Service-depot replaceable 2 keypad options:
  • 32 key Numeric/shifted Alpha,
  • 56 key Full alpha & Numeric


Accessories

  • Standard accessories: AC/DC power adaptor &
  • country plug, Stylus pen & tether, Hand strap,
  • Standard battery, LCD protection film
  • Optional accessories: Single-slot cradle,
  • Single slot ethernet cradle, Extended battery,
  • Gun-handle, 4-slot cradle, 4-slot battery charger,
  • USB sync cable.


Regulatory Approvals and Compliance

  • FCC, IC, cUL, CE,CB, ANATEL,
  • UL HAZLOC ISA12.12.01 (C1,D2,G A-D)
  • CCC&SRRC, TELEC, KC WEEE, RoHS



Features & Benefits

The terminal what most needed at your harshest warehouse

When you need to do intensive barcode scanning job with mobility at your harshest working environment, PM450 is the right product for you. Even though your consumers always seek for new and cutting-edge technology, your workers have been always selecting the product with the most convenient and user-friendly features to make their job easiler and faster. PM450 definitely fulfills these controversial requirements but yet adopts latest technology of enterprise mobility trend for next decade.

Maximize power and speed with latest micro processor

Adopting latest Cortex A8 @ 1GHz processor from TI (Texas Instrument), PM450 will give you maximum power and speed for your field workforces to conduct any compli-cated job process in the field. PM450 has 512MB RAM memory and 1GB Flash ROM which is enough to run a variety of embedded applications.


Experience new convenience with new transformable keypad

With 2 different sets of keypad - 32 key Numeric/shifted Alpha & 56 key Full Alpha/Numeric, you will have utmost capability and ease of use at any applications. With Easy Swap function, switching keypad can be done in minutes at service depot.


Utmost rugged terminal but yet featured as enterprise mobile gadget

PM450 can survive 1.8m (6ft) multiple drop at any operating temperature and at any harsh environment with IP65 water/dust sealing. Moreover, just like the mobile handset on your hand, PM450 also features 3.9G HSPA+ WWAN, IEEE 802.11 a/b/g/n Wireless LAN and built-in assisted GPS as well as 5 Megapixel color camera with LED flash in order to adapt on both inside- & outside-4-wall applications.

Truly multiple choices of your automatic data input

PM450 has mid-range 1D laser, standard range 1D / 2D imager and extra range 1D / 2D imager in order to be counted on any user application and its user tendency.

Compatible Utilities

PM450 is designed for serving at as many vertical markets as possible: such as transportation, logistics, distribution centers, manufacturing, govern-ment, public sectors as so on. As it is truly everywhere survival product in your field, with PM450, you can count on your workers completely without any error input or delay. Moreover, you can completely drop off hassles with less down time and low total cost ownership.
